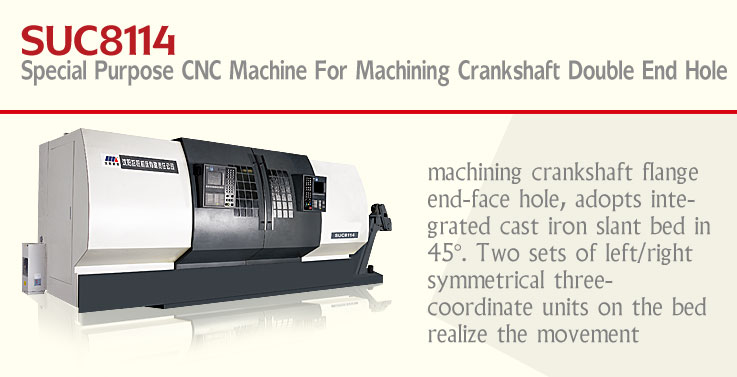

machining
crankshaft flange end-face hole, adopts integrated cast
iron slant bed in 45°. Two sets of left/right
symmetrical three-coordinate units on the bed realize
the movement in X, Y and Z directions. Equipped with two
sets of SIEMENS 802D CNC systems, three axes of this
machine can interpolate. Therefore, both ends of the
crankshaft can be machined simultaneously and also
separately. The machine is suitable for machining
double-end holes of various crankshaft components with
length range from 500mm to 1100mm, and features high
rigidity, high accuracy, high automaticity, low labor
intensity and convenient operation, as well as suitable
for large volume production.
|
