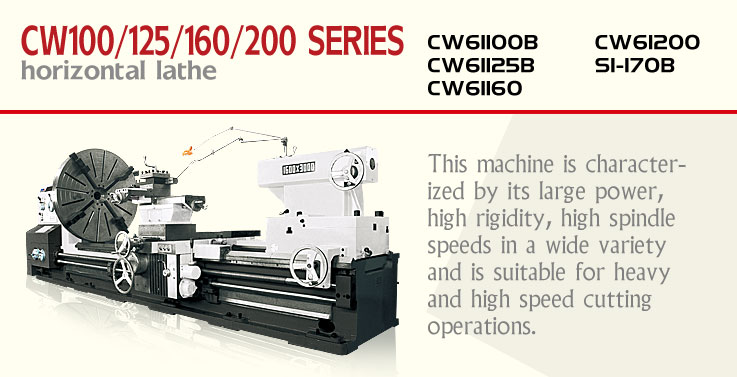

This machine is
characterized by its large power, high rigidity, high
spindle speeds in a wide variety and is suitable for
heavy and high speed cutting operations. The machine is
suitable for facing , turning external and internal
cylindrical sufaces as well as cutting of a wide range
of different metric, whitworth, module and diametral
pitch threads, It can be used for drilling, trepanning
and boring operations as well. Braking and
rotating-direction change of spindle is controlled by
hydraulic power with sensitive and reliable
performances. By the manipulation of a push buttom,
spindle speed change can be made to a higher or lower
step without stopping the machine. Lubrication in the
headstock is effected by forced pressure oil while
spindle speed ranges are furnished for selection by user
when placing order. The apron is provided with a safety
device to protect the machine against overloading. The
top slide may be operated by power for cutting short
taper surface. The combination of longitudinal feed of
the saddle and feed of the slide facilitates the cutting
of a long taper surface on this machine. All guideways
on the bed are casehardened to prolong their service
life. The centralized levers can be easily and
conveniently operated.
|
